YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts

Guanghan N&D Carbide Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts

  • 1
  • 2
  • 3

Brand Name : N&D

Model Number : ND-SEAL RING

Certification : ISO,API

Place of Origin : CHINA

MOQ : 10 PIECE

Price : USD 1.00~3000.00 PER PIECE

Payment Terms : T/T, Western Union

Supply Ability : 6 TONS PER MONTH

Delivery Time : 15-30 DAYS

Packaging Details : STANDARD EXPORT PACKING

Product Name : YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts

Material : Tungsten Carbide Cobalt / Nickel

Keywords : Customizable tungsten carbide seal rings

Material Grade : YG6/8/10/13/15/20, YN6/8/10...

Surface : Blanks/Lapping/Finished

Certificate : ISO/API

Standard : Standard or Nonstandard

shape : Mechanical Seal, O Ring, Cemented carbide seal,TC Ring

Application : Pumps, Mechanical Seals

appearance : customized

Contact Now

YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts



Description:

YG6/8/10/13/15 customizable tungsten carbide seal rings wear parts is a kind of sealing device that can withstand high temperature, high pressure and corrosive media. It is made of high-quality materials, usually metal or elastic materials, with good elasticity and sealing properties. The high-strength sealing ring forms an enclosed space by tightly uniting the two planes to prevent the leakage of gas, liquid or other media.

YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts



Grade Chemical Component(%)
  WC CO NI TIC OTHER Bending Strength(>N/m㎡) Hardness (>HRA) Density (g/cm3)
YN6 94 / 6     1500 89 14.5-14.9
YN8 92 / 8     1650 88 14.4-14.8
YN10 90 / 10     2100 87 14.3-14.7
YG6 94 6 /     1550 89.5 14.7-15.1
YG8 92 8 /     1700 89 14.6-14.9
YG13 87 13 /     2400 88 13.9-14.3
YG15 85 15 /     2500 87 13.9-14.3







Application:

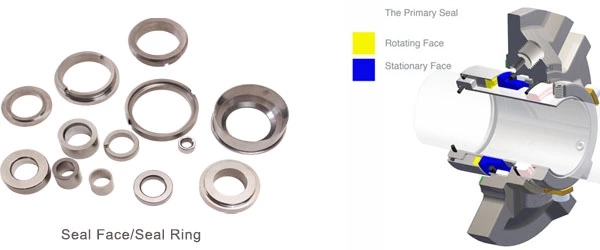

The tungsten carbide seal-ring can divided into both of the rorating seal-ring, and state seal ring, and constitutes mechanic seal together with the spring, rubber seal-ring and steel jacket. YG6/8/10/13/15 customizable tungsten carbide seal rings are widely used in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.

YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts



YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts

Service:

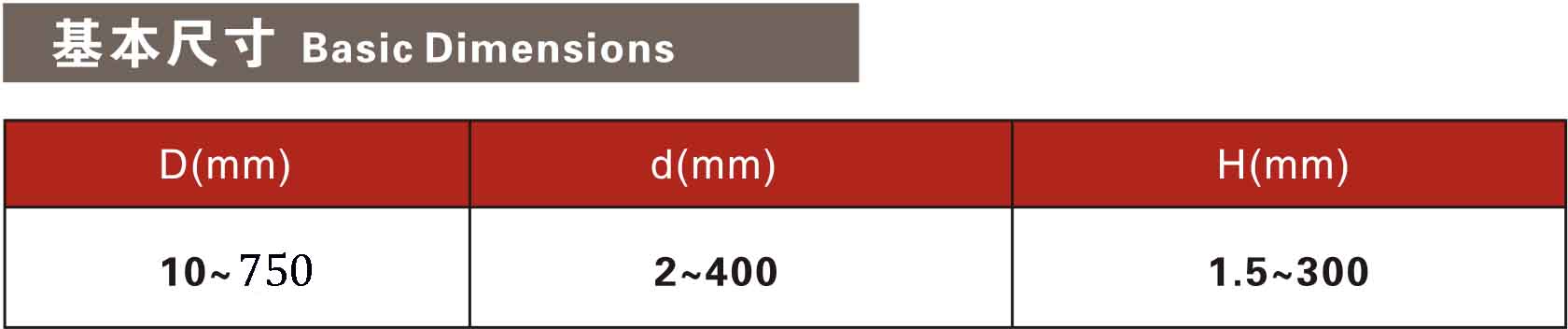

There is a big choice of sizes and types of the YG6/8/10/13/15 customizable tungsten carbide seal rings, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.





YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts

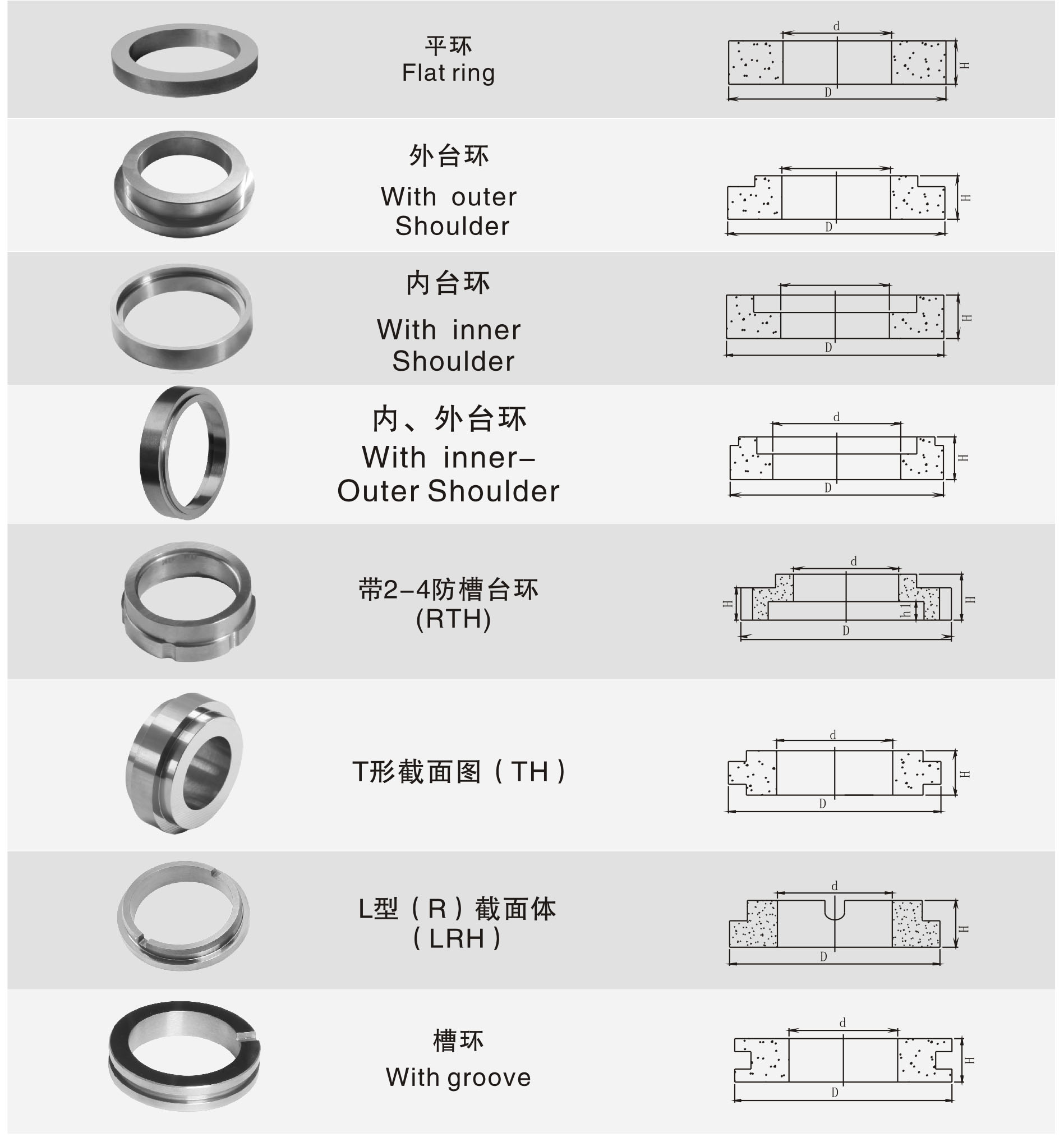

T.C Ring Shape for reference:

YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts





Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:

*Mechanical seal rings

* Bushings, Sleeves

*Tungsten Carbide Nozzles

*API Ball and Seat

*Choke Stem, Seat, Cages, Disk, Flow Trim...

*Tungsten Carbide Burs/ Rods/Plates/Strips

*Other custom tungsten carbide wear parts



We offer a full range of carbide grades in both cobalt and nickel binders.

We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.







FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.

Q: How long is your delivery time?

A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.

Q: Do you provide samples? is it free or charged?

A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.

Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
